UM6P Researcher’s Formula: How to Make 1+1=3 in the Fight Against Scale
The same chemical process that builds seashells and strengthens skeletons is also a silent saboteur of global industry. Inside countless miles of pipeline, the natural tendency of calcium carbonate to form a hard crust is a multi-billion-dollar problem. The conventional cure has become almost as problematic as the disease, forcing a search for a solution that doesn’t just stop scale, but does so on nature’s own terms. The answer, it turns out, might be to let a little of the forest grow inside the pipe.
Dr. Olivier Horner is Head of Research at UM6P Global Hub France, where he drives initiatives at the crossroads of science, innovation, and industry. His career spans academia and applied research in inorganic/mineral chemistry and water treatment. He has held leadership positions across leading French institutions in engineering, agriculture, public health, and environmental safety and was a researcher at the CNRS.

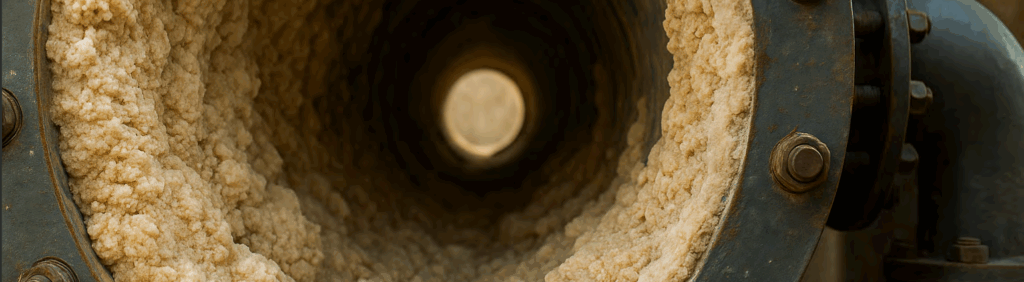

Scale is the slow, hard death of industry. It begins invisibly, as a simple shift in the molecular balance of water. But in the hidden veins of our world – the cooling pipes of power plants, the high-pressure arteries of desalination facilities, the deep-well conduits of oil fields – this imbalance precipitates a crisis. Ions of calcium and carbonate, once dissolved, begin to link into crystalline lattices, forming a rock-like crust that chokes flow, bleeds energy, and costs the global economy billions. For decades, the fight against this petrification has been waged with chemical weapons: phosphonates and other potent inhibitors that work by brute force, distorting crystal growth at the molecular level. They are effective, but their legacy is toxic, polluting waterways and facing ever-stricter environmental regulations. The question is no longer if they must be replaced, but with what.
For Dr. Olivier Horner, in collaboration with researchers from UM6P’s International Water Research Institute (IWRI) and UM6P’s Applied Chemistry and Engineering Research Centre of Excellence (ACER-CoE), the answer has been hiding in plain sight — in the sun-baked landscapes of Morocco and beyond. Their laboratory ranges from molecular simulations on a computer screen to the very plants that thrive in calcareous soils. Their work suggests that the most powerful weapons against scale aren’t found in a chemical drum, but in nature’s own evolved toolkit, augmented by 21st-century intelligence.
The Silent Scourge in the Pipe
To grasp the challenge of scale, consider the saturation index, a measure of water’s aggressive tendency to form crystals. When this index tips, the precipitation of calcium carbonate becomes not a possibility, but a thermodynamic inevitability. In a desalination plant, this can mean membranes – the delicate, expensive hearts of the system – becoming irreversibly clogged. In an oil well, it can mean a pipeline’s diameter shrinking to a pinhole, strangling production.
The conventional antidote has been a class of chemicals that are themselves becoming a liability.
“The discharge is strictly regulated by environmental legislation,” Horner states, pointing to the strict criteria set by international bodies like the Oslo and Paris Commission (OSPAR).
A truly green inhibitor must be biodegradable, non-toxic, and show no tendency to accumulate in living tissue – a bar traditional phosphonates fail to clear. The search for a replacement, therefore, is more than an academic exercise. It is an industrial imperative. And at UM6P, it has become a multidisciplinary hunt for a smarter, more elegant solution.
Learning from Survivors
The first clues are written in the land itself. To understand where to look for a green inhibitor, one must ask: what life thrives where scaling is a constant threat? The answer lies in the plants adapted to dry, calcareous soil – the olive trees, rosemary bushes, and carob trees. For them, preventing internal mineralization is a matter of survival. They are, in effect, natural chemists, and their extracts are the product of millions of years of research and development.
“Rich in phenolics, carboxyls, and hydroxyls, plant extracts chelate Ca²⁺ and adsorb onto nascent calcite surfaces, altering crystal growth and morphology,” Horner explains.
In practice, this means a molecule like oleuropein from an olive leaf doesn’t just block scale; it actively transforms it. Instead of forming hard, adherent calcite, the minerals are coaxed into softer, more dispersible polymorphs like vaterite. The research catalogues a veritable pharmacy of scale prevention. Extracts from fig leaves, palm leaves, and rosemary have all shown strong inhibition at practical doses. But the breakthrough isn’t just in identifying a single magic plant; it’s in understanding the sophisticated, multi-pronged defense these natural cocktails provide.
The Synergy Gambit
The most profound insight emerging from this work is that green chemistry need not be a search for a single perfect molecule. Instead, it can be the artful combination of complementary agents, creating a whole greater than the sum of its parts. This is the principle of synergy, and it is where the science moves from substitution to true innovation. Blends can pair a fast growth-inhibitor with a nucleation-delayer,” Horner notes. He points to a landmark study combining two biodegradable polymers, PESA and PASP. Alone, PASP is excellent at stopping crystals from growing larger. PESA is a master at postponing the very moment a crystal begins to form. Together they keep the same high inhibition rate while doubling the nucleation delay — ideal for long-residence systems,” he says. This is a molecular relay race. One inhibitor sets the stage, creating a transient, harmless precursor, and the second stabilizes it, dramatically extending the prevention window. For an industrial cooling circuit, this synergy can be the difference between continuous operation and a catastrophic shutdown. This approach also offers a pragmatic path for transition. Horner highlights that other combinations, such as amino acids + traditional inhibitors, maintain 90% efficiency while cutting less-green components by 50–70%. It is a strategy of managed, intelligent detoxification.
The Self-Reporting Inhibitor
If synergy provides the brawn, the next frontier supplies the brains. The most startling innovation is the creation of scale inhibitors that can report on their own performance in real time. This involves the synthesis of carbon quantum dots (CQDs) from agricultural waste like sugarcane bagasse or pomelo peels. “CQDs made from agri-waste carry surface carboxyls that chelate Ca²⁺ and disrupt crystal growth,” Horner describes. But their genius lies in their built-in fluorescence. “Their fluorescence dims (‘quenching’) as they adsorb on growing scale, enabling real-time tracking of inhibitor consumption and scale formation right in the industrial circuit.” This transforms scale management from a scheduled, often wasteful ritual into a precision process. An operator is no longer dosing blind but can see the scale-forming process as it happens and adjust accordingly. The next logical step is to make these smart particles recyclable. “Magnetically retrievable fluorescent inhibitors are a next step,” Horner confirms, a development that would allow for easier separation and reuse with less environmental release risk.
The Digital Alchemist
Underpinning these tangible advances is a quiet digital revolution. Long before a molecule is synthesized in a lab, its potential can be probed and ranked inside a supercomputer. Computational modeling techniques like Density Functional Theory (DFT) and Molecular Dynamics (MD) allow researchers to peer into the atomic-scale battle between inhibitors and crystals.“DFT/MD/AIMD reveal which functional groups bind strongly to specific calcite faces and how inhibitors assemble into blocking films,” says Horner. These tools have already ranked polymer families (e.g., PESA > PASP > oxidized starch > Carboxymethyl Cellulose) and explained adsorption and chelation mechanisms.
In a study on basil extract, simulations identified rosmarinic acid as the champion compound, showing how its specific structure allows it to outcompete water molecules for the most critical spots on a growing crystal. While challenges remain — “better force fields and more realistic surfaces/defects are still needed” — this computational guidance is drastically accelerating discovery, turning it from a game of chance into one of rational design.
The Converging Future
When asked about the most exciting future direction, Horner doesn’t point to a single technology, but to a convergence. “Three converging tracks: (i) smart, real-time monitored inhibitors integrated with automated dosing; (ii) sourcing from agri/food waste for circular, low-cost feedstocks; and (iii) computation-guided design to hit sub-mg/L performance at scale,” he said. “Together, they enable cleaner circuits with lower chemical footprints and tighter process control.” This convergence points toward a future where managing scale is less about applying a standard chemical and more about deploying a tailored, intelligent system. It suggests a shift in the very work of industrial maintenance — from a manual, repetitive task to a data-driven, analytical process.
